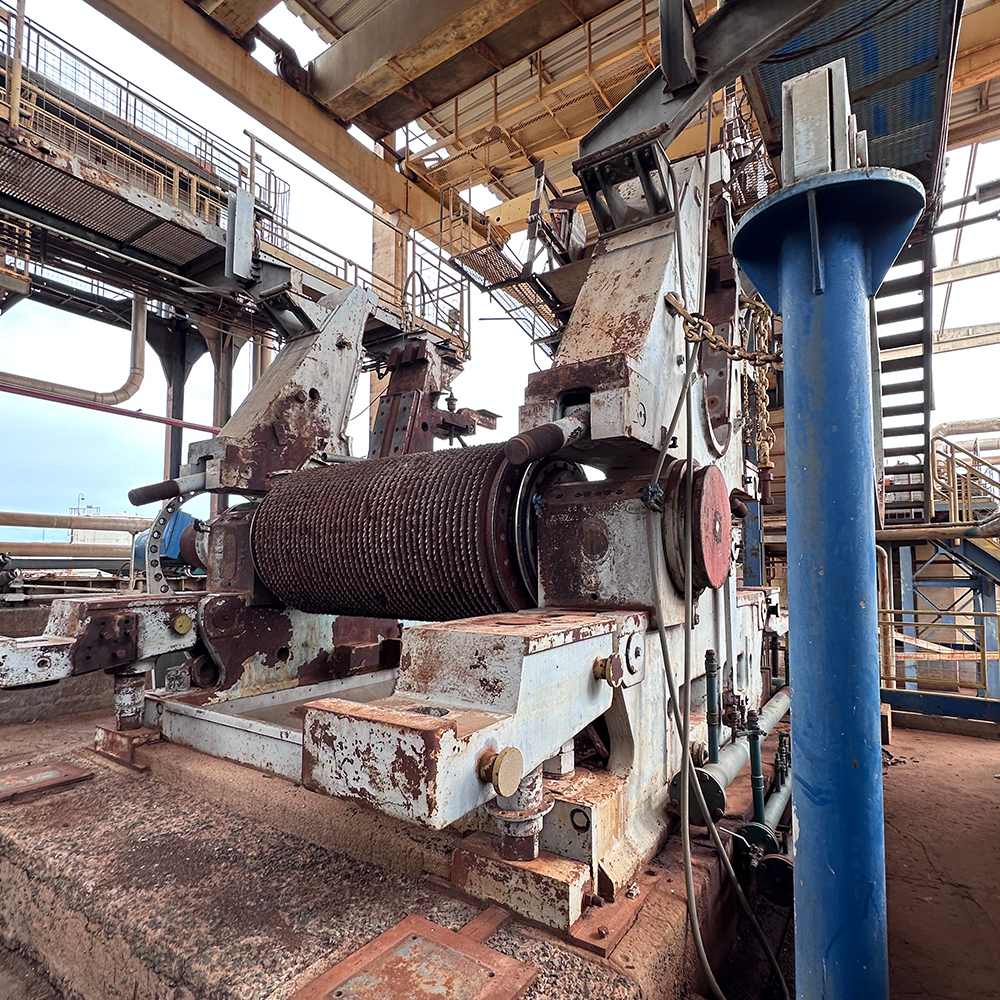

1st Milling tanden 46 X 84″ EJB029
Model: 46 X 84″
1st Tanden housing EJB029.1
Model: 46 X 84″
1st Tandem discharge roll EJB029.4
Model: 46 X 84″
Individual drive
1st Tadem press roll EJB029.5
Model: 46 X 84″
Individual drive
1st Tamdem Headstocks EJB029.6
Model: 46 X 84″
Steam turbine – Top roll EJB029.7
Model: TM Flex 1000
Capacity: 42 (KGF/CM²)
Power: 650 KW
Speed: 4500 rpm
Temperature: 410 °C
Exhaust: 1.5 (KGF/CM²)
High-speed reducer – Top Roll EJB029.8
Model: RTS 280
Power: 1000 KW
Speed: 6500 rpm
Reduction Ratio: 4.76
Oil: ISO VG 68
Low-speed reducer EJB029.9
Model: RPZ 3 410E
Power: 1200
Speed: 1185 rpm
Reduction Ratio: 170
Oil: ISO VG 460EP
Reducer – Press roll EJB029.10
Model: RPZ 3 180E
Power: 150
Speed: 1185 rpm
Reduction Ratio: 170
Oil: ISO VG 460EP
Electric motor – Feed roll EJB029.11
Model: HGF355
Power: 500
Reducer – Feed roll EJB029.12
Model: RPZ 3 335SE
Power: 600
Speed: 1185 rpm
Reduction Ratio: 170
Oil: ISO VG 460EP
Without electric motor / inside the sugar warehouse
Reducer – Discharge roll EJB029.13
Model: RPZ 3 335SE
Power: 600
Speed: 1185 rpm
Reduction Ratio: 170
Oil: ISO VG 460EP
Bearing lubrification system EJB029.14
Model: Gears
Power: 2
System with two gear pumps
Milling hydraulic unit EJB029.15
Model: Hydraulic
Only the unit, without hydraulic cylinders
Bearing cooling pump No. 01 EJB029.16
Model: INI
Bearing cooling pump No. 01 EJB029.17
Model: INI 100/160
Capacity: 150 (M³/H)
Impeller diameter: N/I (mm)
Head: 10 (mca)
Bearing cooling pump No. 03 EJB-029.18
Model: INI
Bearing cooling pump No. 03 EJB-029.19
Model: INI 325/200
Capacity: 200 (M³/H)
Impeller diameter: 235 (mm)
Head: 25 (mca)
