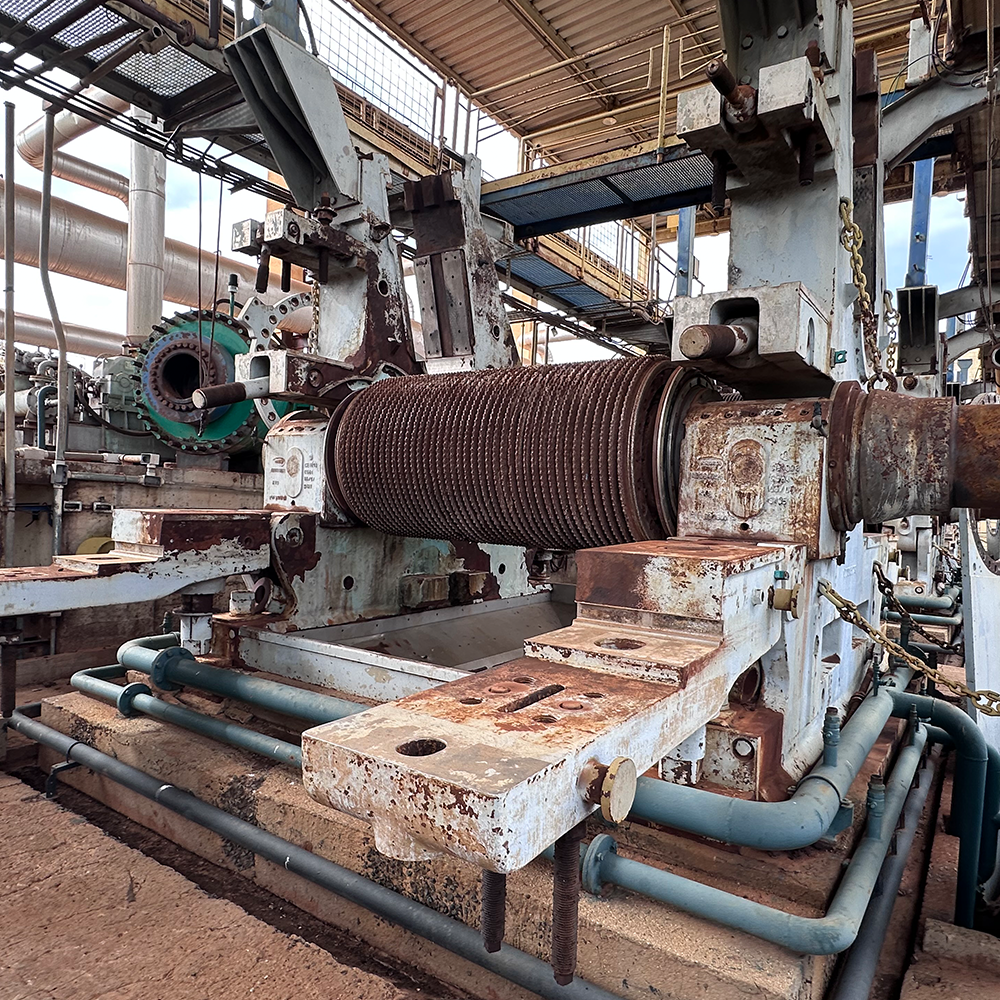

2nd MILLING TANDEM 46 X 84″
EJB030
Manufacturer: DEDINI
Model: 46 X 84″
Weight of housings, rolls and hydraulic headstocks
2nd TANDEM HOUSING
EJB030.1
Manufacturer: DEDINI
Model: 46 X 84″
2nd TANDEM FEED ROLL
EJB030.3
Manufacturer: DEDINI
Model: 46 X 84″
Individual drive
2nd TANDEM PRESS ROLL
EJB030.4
Manufacturer: DEDINI
Model: 46 X 84″
Individual drive
2nd TANDEM DISCHARGE ROLL
EJB030.5
Manufacturer: DEDINI
Model: 46 X 84″
Individual drive
2nd TANDEM HEADSTOCKS
EJB030.6
Manufacturer: DEDINI
Model: 46 X 84″
STEAM TURBINE – TOP ROLL
EJB030.7
Manufacturer: TGM TURBINAS
Model: TM FLEX 1000
Capacity: 42 (KGF/CM²)
Power: 650 KW
Speed: 4500 rpm
Temperature: 410 °C
Exhaust: 1.5 (KGF/CM²)
HIGH-SPEED REDUCER – TOP ROLL
EJB030.8
Manufacturer: TGM TURBINAS
Model: RTS 280
Power: 1000 KW
Speed: 6500 rpm
Reduction Ratio: 4.76
Oil: ISO VG 68
LOW-SPEED REDUCER – TOP ROLL
EJB030.9
Manufacturer: TGM TURBINAS
Model: RPZ 3 410E
Power: 1200
Speed: 1185 rpm
Reduction Ratio: 170
Oil: ISO VG 460EP
REDUCER – PRESS ROLL
EJB030.10
Manufacturer: TGM TURBINAS
Model: RPZ 3 180E
Power: 150
Speed: 1185 rpm
Reduction Ratio: 170
Oil: ISO VG 460EP
REDUCER – FEED ROLL
EJB030.11
Manufacturer: TGM TURBINAS
Model: RPZ 3 335SE
Power: 600
Speed: 1185 rpm
Reduction Ratio: 170
Oil: ISO VG 460EP
REDUCER – DISCHARGE ROLL
EJB030.12
Manufacturer: TGM TURBINAS
Model: RPZ 3 335SE
Power: 600
Speed: 1185 rpm
Reduction Ratio: 170
Oil: ISO VG 460EP
DRAG CONVEYOR 1st TO 2nd TANDEM
EJB030.13
Manufacturer: DEDINI
Model: DRAG
PRIMARY JUICE TANK
EJB030.14
Model: ELEVATED, CONICAL BOTTOM
Capacity: 80 (M³)
Carbon steel construction
SECONDARY JUICE TANK
EJB030.15
Model: ELEVATED, CONICAL BOTTOM
Capacity: 80 (M³)
Carbon steel construction
MIXED JUICE PUMP No. 01
EJB030.16
Manufacturer: IMBIL
Model: INI 150/400
Capacity: 280 (M³/H)
Impeller diameter: 405 (mm)
Head: 36 (mca)
MIXED JUICE PUMP No. 02
EJB030.17
Manufacturer: IMBIL
Model: ITAP 200/600 HD
Capacity: 900 (M³/H)
Impeller diameter: 470 (mm)
Head: 35 (mca)
MIXED JUICE PUMP No. 03
EJB030.18
Manufacturer: IMBIL
Model: INI
