Equipment details and technical specifications:

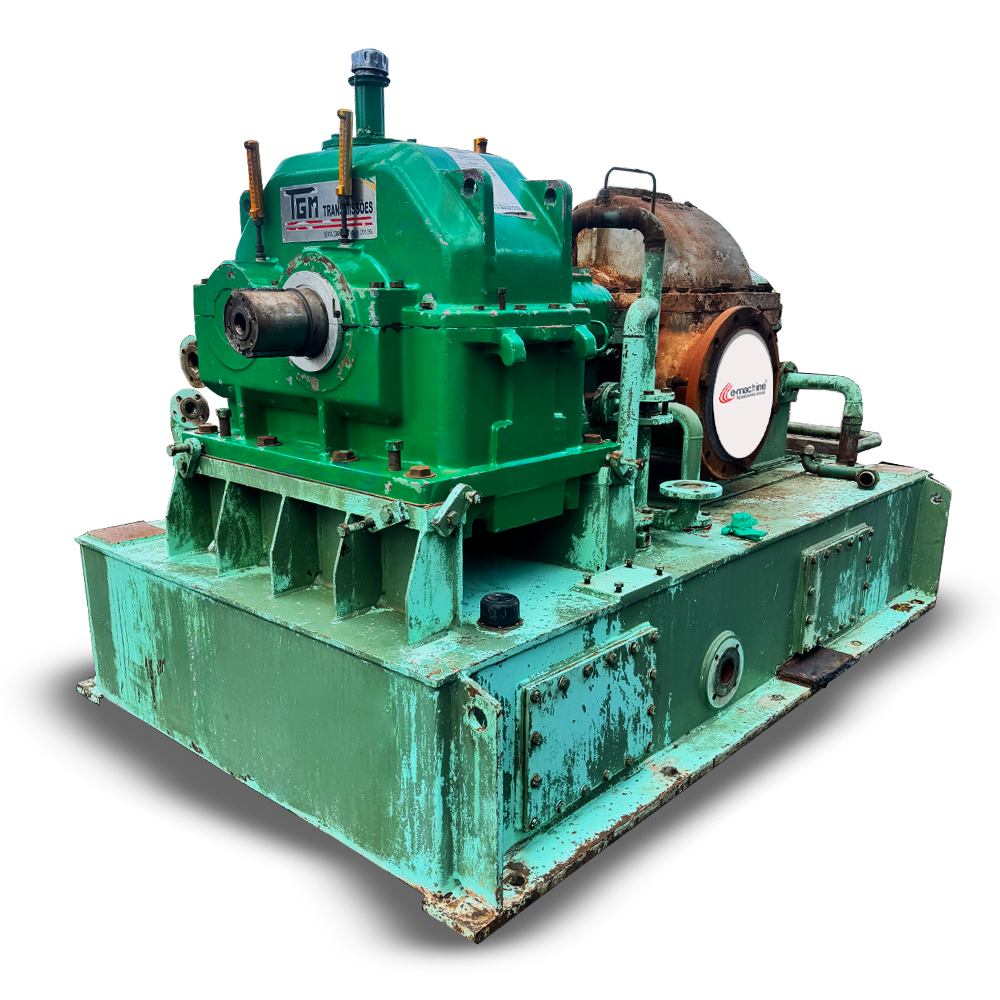

STEAM TURBINE
Manufacturer: TGM
Model: 155 ME
Power: 1,491 / 895 kW
Nominal speed: 5500 RPM
Maximum speed: 6050 RPM
Pressure: 42 / 21 kgf/cm²
Back pressure: 2.5 kgf/cm²
Temperature: 400 / 300°C
Original single-stage Dedini 55 CE turbine design, modified for multiple stages by TGM.
PARALLEL SHAFT SPEED REDUCER
Manufacturer: TGM
Model: RTS-280
Input speed: 5500 RPM
Output speed: 1198 RPM
Reduction ratio: 14.59
Service factor: 2.0
Power: 1230 HP
STEAM TURBINE
Manufacturer: TGM
Model: 155 ME
Power: 1,491 / 895 kW
Nominal speed: 5500 RPM
Maximum speed: 6050 RPM
Pressure: 42 / 21 kgf/cm²
Back pressure: 2.5 kgf/cm²
Temperature: 400 / 300°C
Original single-stage Dedini 55 CE turbine design, modified for multiple stages by TGM.
PARALLEL SHAFT SPEED REDUCER
Manufacturer: TGM
Model: RTS-280
Input speed: 5500 RPM
Output speed: 1198 RPM
Reduction ratio: 14.59
Service factor: 2.0
Power: 1230 HP
